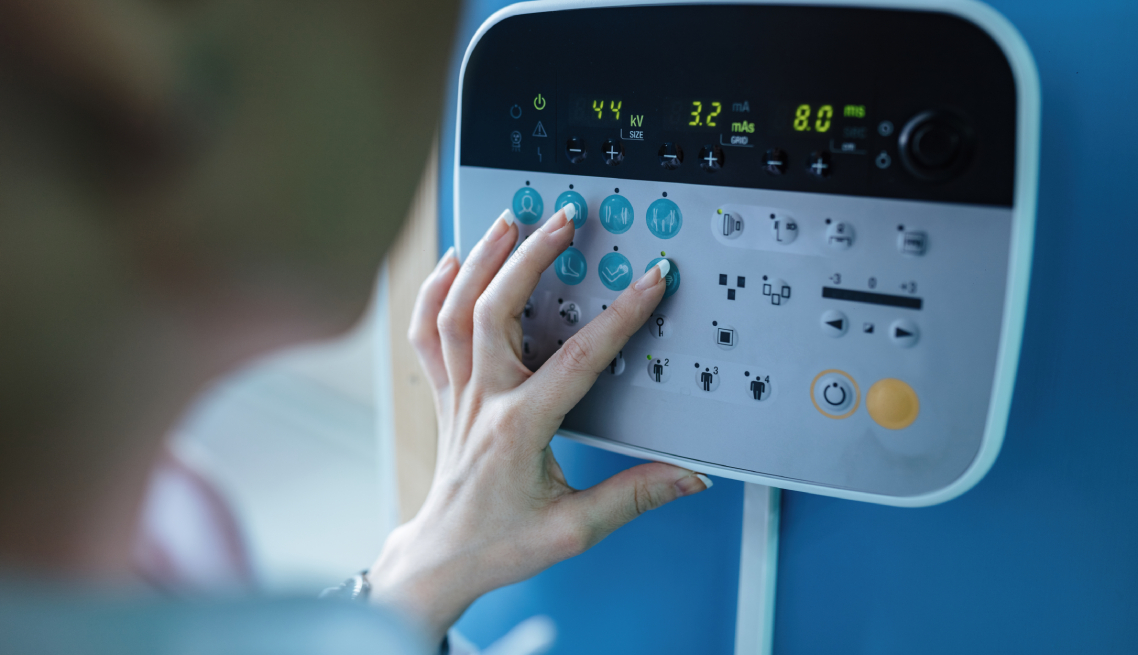

printec hmi interface manufacturing

HMI MANUFACTURING

Hire PRINTEC’s HMI Manufacturing Services for Seamless Efficiency

Human Machine Interfaces are one of the most integral aspects of infrastructures in today’s economy. PRINTEC offers top-class HMI manufacturing service for all industries to help them function better in the future.

Designed to help humans command and interact with critical and industrial machines, HMIs play a big role in the proper functioning of technological equipment.

Why do you need PRINTECs HMI Development Services?

For people working regularly with critical infrastructure techs, be it medical or industrial, effective HMI solutions are important. It helps users benefit from automated machinery by creating an effective interface between man and technology.

The applications of HMIs are multifaceted.

What are its primary applications?

Being a push button replacement – One of the primary applications of HMI is that it allows people to replace the whole control mechanism of items such as a switch that would traditionally go on and off of multiple devices turn into one single action.

Handling Data – This allows users to monitor instruments that need constant feedback.

Overseer HMIs – These are the most complex and valuable types of human machine interfaces. They can help control entire units of varied machinery and work with SCADA (Supervisory Control and Data Acquisition) and MES (manufacturing execution systems).

If you want HMI services that will help you integrate your industrial, medical, or other machinery, then you can always choose PRINTEC as your number one choice. It offers one of the most affordable solutions of human interface; the company is backed by professionals who are passionate about HMI manufacturing and render only the best services. Also, their amazing affordability and belief in quality service followed by maintenance provisions satisfy their clients’ needs every time.

Have any questions you would like answered? You can contact PRINTEC now for all your questions about HMIs manufacturing service.

PRINTEC ’s world-class factories in Taipei, Taiwan and Fullerton, California, USA feature full membrane switch and FPC manufacturing capabilities, including silkscreen and digital printing, material conversion, assembly, and testing. We have Class 1,000, 5,000 and 10,000 Clean Room facilities, automated SMT placement for component population onto circuits (two fully automated lines capable of populating up to 10 million/month), backlighting technologies (to include fiber optics panels and Light-Guide Films (LGFs)), sensor assemblies (medical and otherwise).

Membrane Switch Technology & Multi-Material Graphic Overlays

  • Full membrane switch capabilities: Printed circuits by silver & carbon conductive inks on polyester, with dielectric inks for insulation, jumpers and crossovers, and physical protection.
  • Digital or screen back-printed plastic film graphic overlays & custom silicone rubber molded overlays.
  • Embossing of various types, to include pillow (otherwise known as plateau or full), rim (or rail), dome, etc.
  • Selective texturing
  • Display lenses and windows, and LED indicator windows (clear and translucent/frosted colors available)
  • Backlighting options – Indicator LEDs, Light Guide Film (LGF), Fiber Optic Panels, EL Panels.
  • Non-tactile and tactile (metal dome, polydome) switches
  • Cutting capabilities include hard-tooling, steel-rule die cutting, and laser-cutting
  • Turnkey / Value Added assembly – i.e. keypad on metal or plastic bezel, backlighting options, mounted FPC or PCB.
  • CAD & artwork design service by Printec USA & Taiwan Engineering – Following ASTM Design and Manufacturing Standards.
  • Clear conductive printing & ITO assemblies

Flex Circuit (FPC): Etched Copper Circuits on Polyimide

  • Single-sided, double-sided, multi-layer (up to 8 Layers) & rigid flex capabilities.
  • SMT – 2 fully automated lines – capability of populating up to 10million components per month.
  • Turnkey/value added assembly – i.e. FPC to PCB assembly, overlay and keypad assemblies to metal or plastic bezels.
  • Gerber/CAM design & engineering support service by Printec USA & Taiwan Engineering team.

In Mold Design (IMD)

  • Complete graphic capability through In-Mold Design using PET/PC blend films.
  • Rigid plastic injected molded to the contours of the 3D formed graphics.
  • 3D formed graphics and injection-molded plastics are permanently thermo-bonded together
  • Turnkey/value added assembly – i.e. IMD cover for silicone keypad with membrane switch, FPC/Rigid-Flex or PCB.



Capacitive Touch/Sensing Technology

  • No mechanical switch fatigue with reliable & durable design capabilities.
  • Capacitive Sensing can be made with flexible or rigid materials – i.e. Polyester Circuits, FPC (Polyimide) or PCB.
  • Capacitive Sensing Signal can be transmitted through substrate materials up to 1” thick.
  • Infrared Sensing can be easily combined with Capacitive Switching for multi-function user interface designs.
  • Easily implemented into value-added/turnkey assemblies.

Plastic Capabilities

  • Injected molded plastics support for enclosures, bezels and other value added/turnkey assemblies.
  • Secondary processes: heat staking, hardware installation, machining, stamping, screen printing and pad printing.
